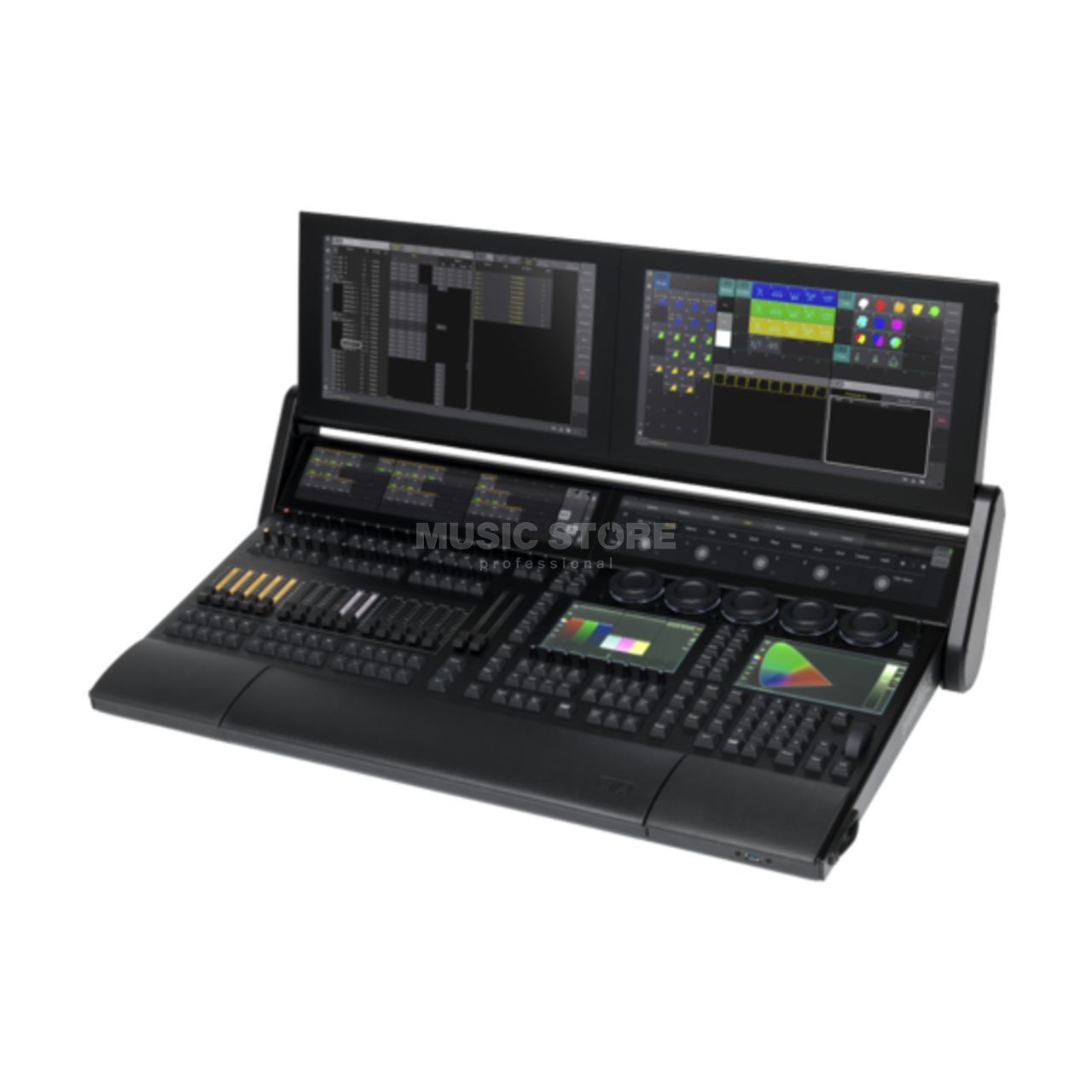

GrandMa3 light
Korte beschrijving
100-240V AC / 300 VA / 33 kg / DMX+etherCON
Lange beschrijving
Operating voltage: AC 100-240 V, 50/60 Hz
Power: max. 300 VA
Dimensions (folded): 85.4 cm width × 53.9 cm depth × 18.1 cm height
Dimensions (unfolded for operation): 85.4 cm width × 58.4 cm depth × 40.9 cm height (max. 45 cm)
Dimensions (maximally unfolded, drawer opened): 85.4 cm width × 87.1 cm depth × 25.5 cm height
Net weight: 33 kg
Connectors: 1× powerCON TRUE1, 3× etherCON/RJ45, 6 DMX outputs, 1 DMX input, 6 USB connectors
Control parameters: 16,384 (HTP/LTP)
Physical controls: 41 rotary RGB backlit encoders, 5 backlit dual encoders, 15 motorized 60 mm faders, 2 motorized A/B faders (100 mm)
Playbacks: 60 separate playbacks, 16 assignable x-keys
Power: max. 300 VA
Dimensions (folded): 85.4 cm width × 53.9 cm depth × 18.1 cm height
Dimensions (unfolded for operation): 85.4 cm width × 58.4 cm depth × 40.9 cm height (max. 45 cm)
Dimensions (maximally unfolded, drawer opened): 85.4 cm width × 87.1 cm depth × 25.5 cm height
Net weight: 33 kg
Connectors: 1× powerCON TRUE1, 3× etherCON/RJ45, 6 DMX outputs, 1 DMX input, 6 USB connectors
Control parameters: 16,384 (HTP/LTP)
Physical controls: 41 rotary RGB backlit encoders, 5 backlit dual encoders, 15 motorized 60 mm faders, 2 motorized A/B faders (100 mm)
Playbacks: 60 separate playbacks, 16 assignable x-keys
