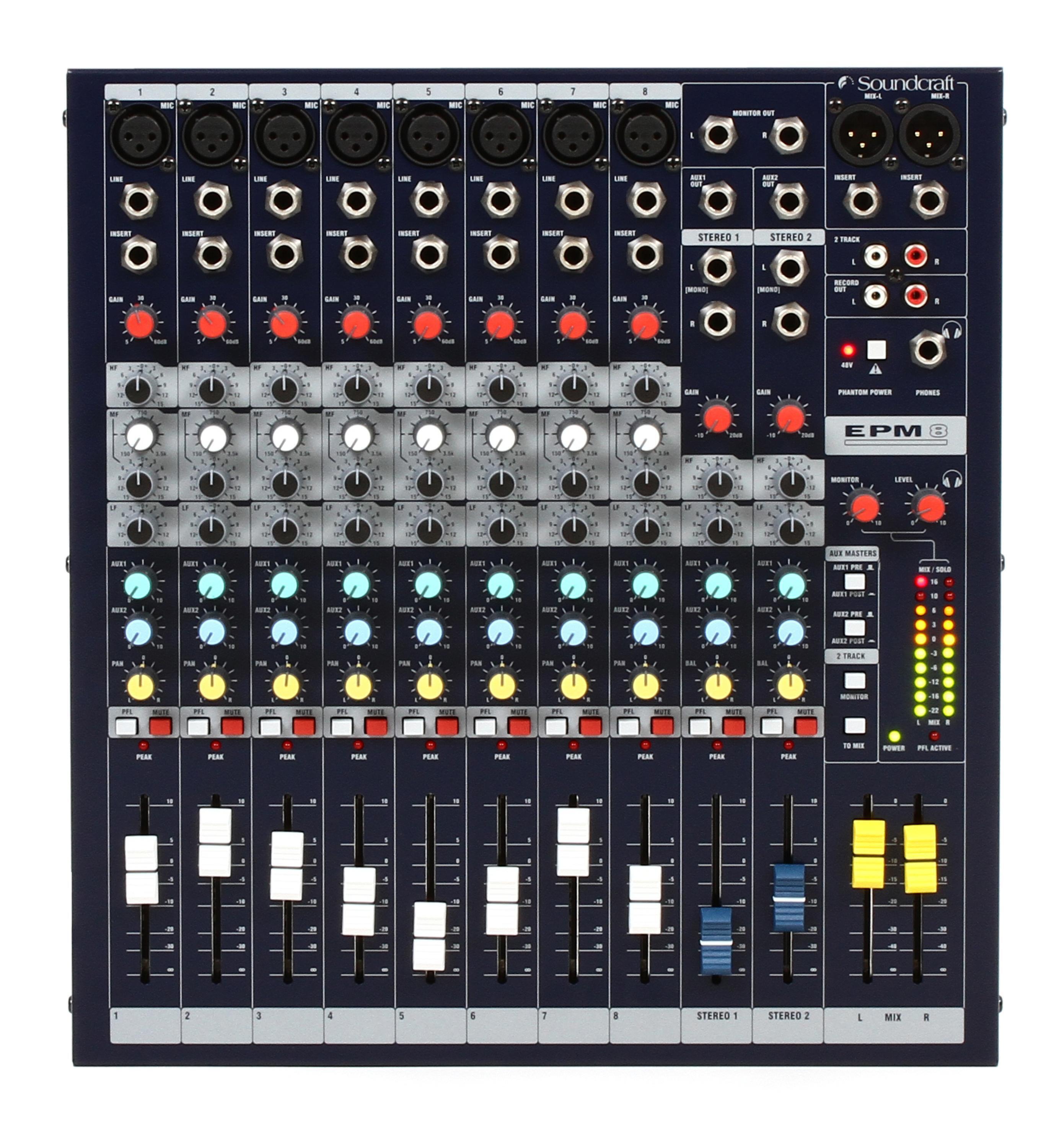

Soundcraft EMP8
Korte beschrijving
85-270V AC / <20W / 5.6kg / 8+2 analog mixer
Lange beschrijving
8 mono and 2 stereo input channels
GB30 microphone preamps
55 dB gain range with +22 dB headroom
3-band EQ on mono inputs (HF 12kHz ±15dB shelving, Mid 150Hz-3.5kHz ±15dB Q=1.5, LF 60Hz ±15dB shelving)
2-band EQ on stereo inputs
48V phantom power
Frequency response: 20Hz-20kHz ±0.5dB
Peak LED metering with multipoint signal monitoring
60mm faders
XLR and 1/4" jack connectors on mono inputs
RCA stereo playback inputs and record outputs
2 configurable auxiliary buses
TRS insert sockets on all mono inputs
Inserts on main output bus
Independent mute switches per channel
Power supply: 85-270V AC, 50/60Hz, <20W consumption
Dimensions: 330mm W × 90.5mm H × 362mm D
Weight: 5.6kg
GB30 microphone preamps
55 dB gain range with +22 dB headroom
3-band EQ on mono inputs (HF 12kHz ±15dB shelving, Mid 150Hz-3.5kHz ±15dB Q=1.5, LF 60Hz ±15dB shelving)
2-band EQ on stereo inputs
48V phantom power
Frequency response: 20Hz-20kHz ±0.5dB
Peak LED metering with multipoint signal monitoring
60mm faders
XLR and 1/4" jack connectors on mono inputs
RCA stereo playback inputs and record outputs
2 configurable auxiliary buses
TRS insert sockets on all mono inputs
Inserts on main output bus
Independent mute switches per channel
Power supply: 85-270V AC, 50/60Hz, <20W consumption
Dimensions: 330mm W × 90.5mm H × 362mm D
Weight: 5.6kg
