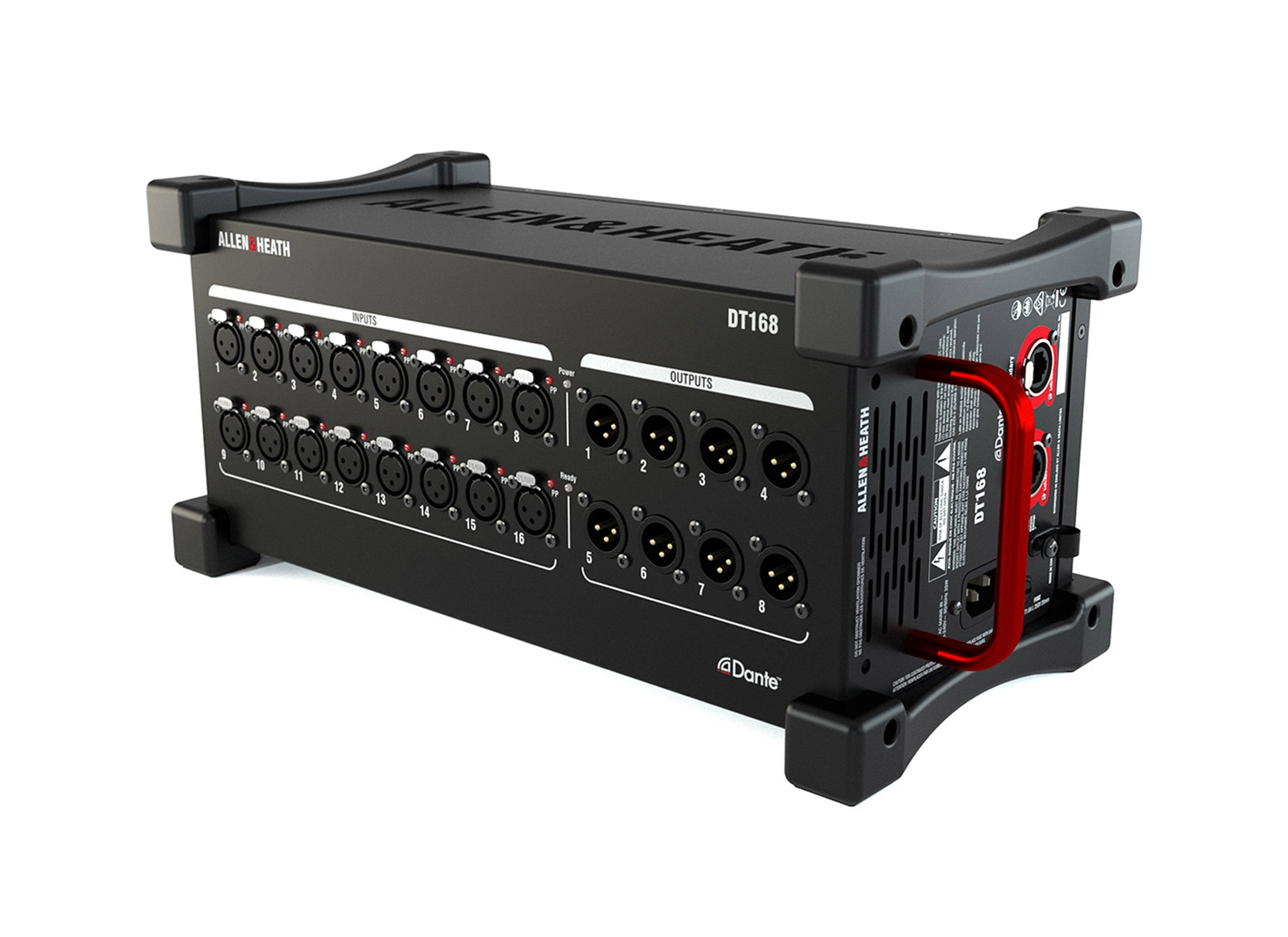

Allen&heath DT1608
Korte beschrijving
16x8 Dante audio expander / XLR I/O / 48kHz–96kHz / 4.8 kg
Lange beschrijving
Format: Dante audio expander, portable stagebox
Microphone inputs: 16 on balanced 3-pin XLR
Line outputs: 8 on balanced 3-pin XLR
Preamp gain: +60 dB
Pad: -20 dB
Phantom power: 48V, selectable per input
Audio resolution: 32-bit / 96 kHz (also 48 kHz)
Dante connectivity: Primary and Secondary EtherCON ports with locking mechanism
Operating modes: Redundant or Switched
Physical: Carry handle, rubber bumpers
Weight: 4.8 kg
Microphone inputs: 16 on balanced 3-pin XLR
Line outputs: 8 on balanced 3-pin XLR
Preamp gain: +60 dB
Pad: -20 dB
Phantom power: 48V, selectable per input
Audio resolution: 32-bit / 96 kHz (also 48 kHz)
Dante connectivity: Primary and Secondary EtherCON ports with locking mechanism
Operating modes: Redundant or Switched
Physical: Carry handle, rubber bumpers
Weight: 4.8 kg
