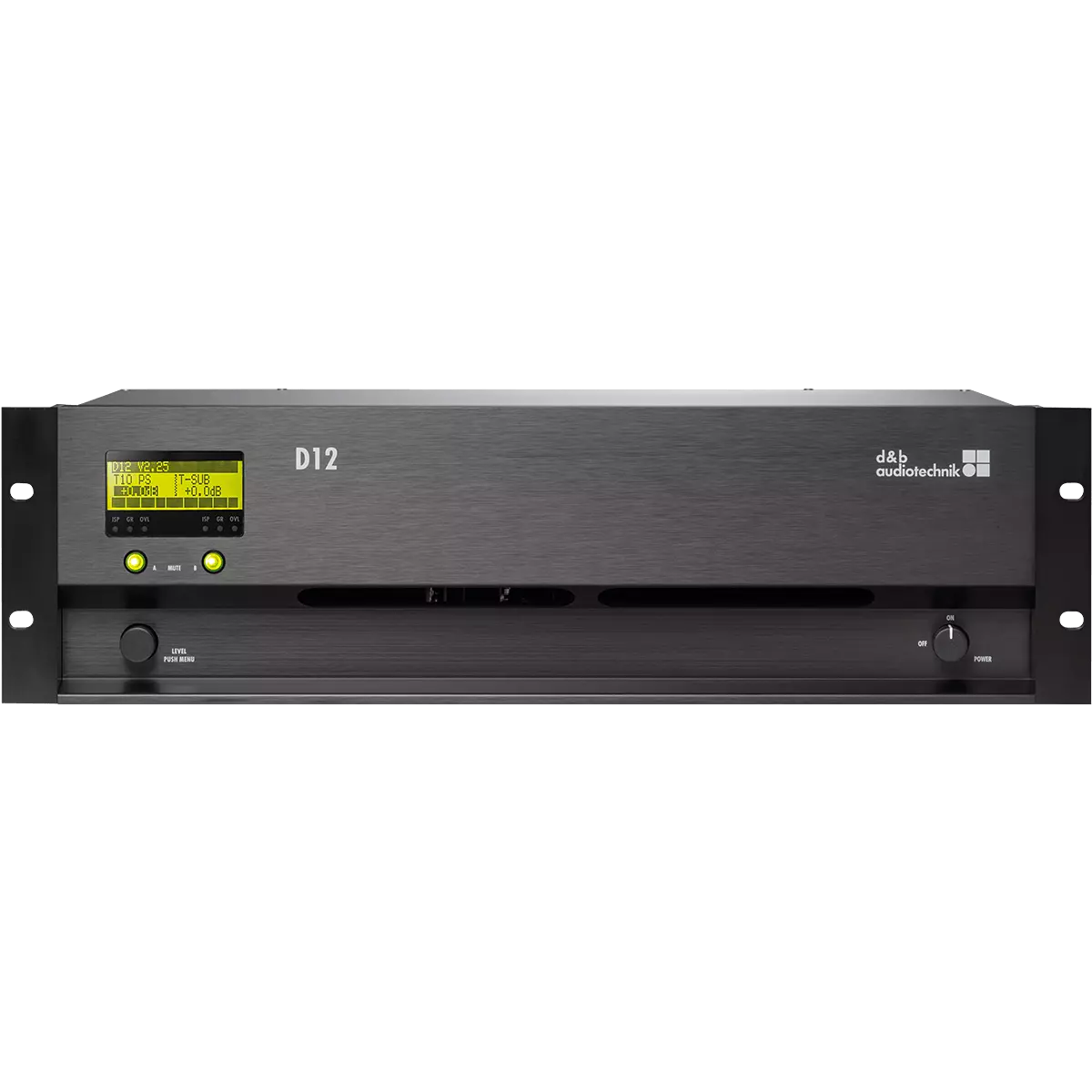

D&B audiotechnik D12
Korte beschrijving
Dual-channel power amplifier / 2×1200W @ 4Ω / 3RU / NL4 connectors
Lange beschrijving
Dual-channel power amplifier
3 RU rack height
Rated output power (THD+N < 0.5%): 2×1200W @ 4Ω, 2×750W @ 8Ω
Connectors: NL4 (Speakon) options available; EP5 or NL8 optional
Mains supply: autosensing switch-mode, 120V/230V 50–60 Hz (optional 100V/200V)
Signal delay: 0–340 ms per channel
4-band parametric equalizer with boost/cut or notch filtering
Digital signal processing (DSP) with loudspeaker-specific presets
Load monitoring and system check functions
Remote control via CAN-Bus (RJ45)
Frequency response (1 dB): 28 Hz – 40 kHz
Latency: 0.3 ms (analog and digital inputs)
Weight: ~12 kg (estimated)
3 RU rack height
Rated output power (THD+N < 0.5%): 2×1200W @ 4Ω, 2×750W @ 8Ω
Connectors: NL4 (Speakon) options available; EP5 or NL8 optional
Mains supply: autosensing switch-mode, 120V/230V 50–60 Hz (optional 100V/200V)
Signal delay: 0–340 ms per channel
4-band parametric equalizer with boost/cut or notch filtering
Digital signal processing (DSP) with loudspeaker-specific presets
Load monitoring and system check functions
Remote control via CAN-Bus (RJ45)
Frequency response (1 dB): 28 Hz – 40 kHz
Latency: 0.3 ms (analog and digital inputs)
Weight: ~12 kg (estimated)
