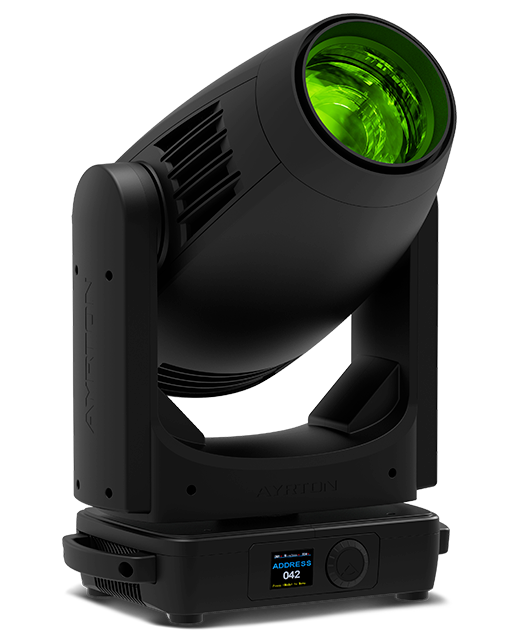

Ayrton Diablo profile S
Korte beschrijving
300W LED profile / 550W power consumption / 19,000 lumens / 7–53° zoom / 22 kg
Lange beschrijving
Type: LED profile moving head (Ayrton Diablo S)
Power consumption: 550W
Input voltage: 100–240V ~ 50/60Hz
Light source: White LED 330W monochromatic
Color temperature: 8000K ±500K
Output: 19,000 lumens
Zoom range: 7° to 53° (7.5:1 ratio)
Optics: 13-element proprietary optical system
Front lens: 119 mm
Framing: 4 motorized shutter blades with ±45° rotation
Iris: 15-blade motorized diaphragm with dynamic effects
Gobo wheel: 7 interchangeable HD glass gobos (25.5 mm diameter, 20 mm image diameter)
Color mixing: CMY + progressive CTO + 7-color wheel
Additional effects: Light frost filter (heavy frost optional), 5-facet rotating prism
Movement: Pan 540°/630° optional (16-bit), Tilt 270° (16-bit)
LED source life: >20,000 hours
Dimensions: 365 × 591 × 208 mm (W × H × D)
Weight: 22 kg
Contents: 1 × Ayrton Diablo S fixture
Power consumption: 550W
Input voltage: 100–240V ~ 50/60Hz
Light source: White LED 330W monochromatic
Color temperature: 8000K ±500K
Output: 19,000 lumens
Zoom range: 7° to 53° (7.5:1 ratio)
Optics: 13-element proprietary optical system
Front lens: 119 mm
Framing: 4 motorized shutter blades with ±45° rotation
Iris: 15-blade motorized diaphragm with dynamic effects
Gobo wheel: 7 interchangeable HD glass gobos (25.5 mm diameter, 20 mm image diameter)
Color mixing: CMY + progressive CTO + 7-color wheel
Additional effects: Light frost filter (heavy frost optional), 5-facet rotating prism
Movement: Pan 540°/630° optional (16-bit), Tilt 270° (16-bit)
LED source life: >20,000 hours
Dimensions: 365 × 591 × 208 mm (W × H × D)
Weight: 22 kg
Contents: 1 × Ayrton Diablo S fixture
